UPDATE JANUARY 2013. CHEVROLET IMPROVES ON MAJOR FACELIFT RELEASED IN 2012. EMAIL FOR DETAILS

Mark Motors Thailand is Thailand’s leading automobile exporter. Toyota Vigo, Toyota Fortuner, Mitsubishi Triton, Nissan Navara and Chevy Colorado are our top 4×2 and 4×4 sellers. Few people realize that Thailand is not just the global hub of 4×2 and 4×4 vehicles but also motorbikes of all kinds. Naturally you can buy not only 4×2 and 4×4 pickups, utes and SUVs but also Honda, Kawasaki, Yamaha and Suzuki motorbikes. Chevy Colorado is a very popular truck and a close fifth in our most requested trucks list.

Contents

2008 Chevrolet Colorado

Thailand assembled Chevrolet Chevy Colorado diesel 4×4 pickup got a facelift in 2008. Here is a view of them in one of our showrooms:

Since most customers prefer vehicles to be accessorized, here are some pics:

colorado-2008

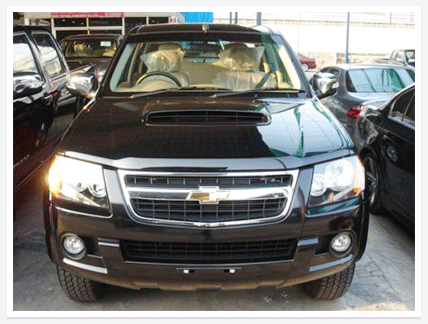

Chevy Colorado 2008 accessorized front view – Get your Chevy now at Mark Motors Thailand and Mike 4×4 Thailand

colorado1-2008

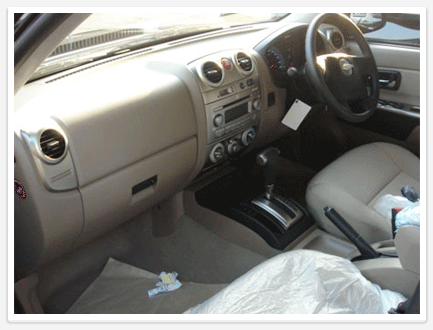

Chevy Colorado 2008 accessorized interior view – Get your Chevy now at Mark Motors Thailand and Mike 4×4 Thailand

colorado2-2008
coloradobackview-2008

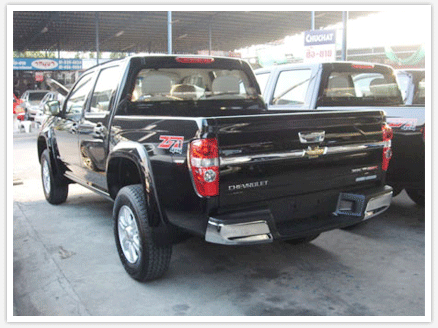

Chevy Colorado 2008 accessorized rear view – Get your Chevy now at Mark Motors Thailand and Mike 4×4 Thailand

coloradostering-2008

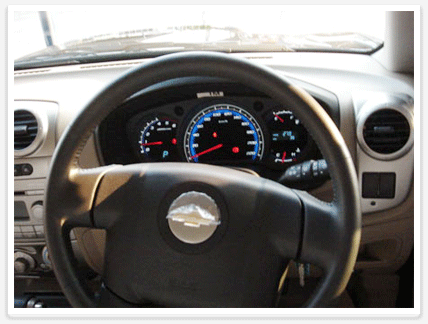

Chevy Colorado 2008 accessorized tv – Get your Chevy now at Mark Motors Thailand and Mike 4×4 Thailand

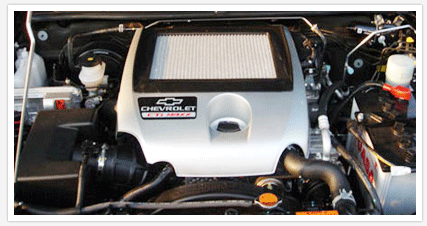

coloradostering-engine

Chevrolet Colorado Intro

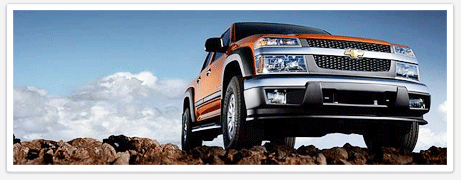

coloradoback

Chevrolet Colorado is a proud successor to the legendary S-series trucks that redefined the small-truck segment by grafting the handling and performance characteristics of a midsize sedan (MacPherson IFS, V-6 power) onto a compact pickup platform.

Bigger, bolder and more refined than any compact Chevy truck in years, the Colorado is an all-new pickup from Chevrolet. Slightly larger than the S-10 truck that it replaces, the Colorado features all-new engines, additional class-exclusive features and a tough new look that makes it instantly recognizable as a Chevrolet pickup. Built on a stout ladder frame chassis, the Colorado offers three body styles, two- and four-wheel drive and a choice of two new Vortec inline engines. Derived directly from the 4.2-liter straight six found in the TrailBlazer SUV, the Colorado’s all-aluminum four- and five-cylinder power plants are the most technologically advanced engines ever offered in a compact Chevrolet truck. Both engines use dual-overhead camshafts, four valves per cylinder and electronic throttle control to deliver a broad range of peak torque that extends from 1,200 to 5,600 rpm on the standard 2.8-liter four-cylinder, and from 1,400 to 5,200 rpm on the optional 3.5-liter five-cylinder. Both engines offer a choice of a four-speed automatic or a new five-speed manual.

colorado1

The suspension consists of a solid rear axle with leaf springs and an independent coil spring front suspension. An off-road package swaps out the coil springs for torsion bars, while a sport package adds an anti-sway bar in back. Off-road enthusiasts will also appreciate the Colorado’s dual-speed push-button transfer case as well as the optional locking rear differential. Since the majority of compact truck buyers purchase their vehicles for personal use, the Colorado was given a more refined and feature-laden cabin than the previous S-10. The overall design is simple, with rotary dials for the climate control system and a large radio faceplate for easy control of the XM Satellite Radio-compatible audio system. Materials quality still isn’t great, but build quality has improved considerably, so expect fewer loose trim pieces and smaller panel gaps.

colorado2rear doors on both sides for easier access to the backseats, while the large crew cab models offer a 60/40-split folding rear seat that can seat three adults, according to Chevrolet. Regardless of whether the cabs are comfortable or not, segment-first side curtain airbags are available that provide head protection in the event of a side impact or rollover accident. Standard antilock brakes and optional traction control on 2WD models further contribute to the Colorado’s complement of safety features. All things considered, the Colorado offers all the necessary ingredients to satisfy the majority of compact truck buyers. Its range of engines provides both efficiency and power, and with three body styles to choose from in both two- and four-wheel drive, finding a perfect fit shouldn’t be too difficult. Although its old-tech S-10 predecessor has kept Chevrolet off the minds of many compact truck buyers as of late, the Colorado has the hardware to make Chevrolet a legitimate competitor in this segment once again.


Colorado has intelligent power plants that perform the way you need them to, including an available Vortec 3500 I-5 engine that generates the horsepower of a V6 with the fuel efficiency of a four-cylinder.

Specifications

Chevrolet Colorado S-CAB
Features

Interior
2WD Single Cab 2.5 GL1
Cluster with techometer .
Control switch at door panel
Airconditioning with heated glass system .
Digital milage .
Central lock
Power window
Radio with cassette .
Speaker 2
Seat and door panel material Vinyl
Power steering with safety collapse system .
Tilt steering
Leather steering wheel and gear knob
Intermittent wiper .
Dome lamp .
Power outlet
Cigarette package .
Middle console with 2 cupholders .
Overhead console include. sunglasses pocket/map lamp
Exterior
Light indicator at side mirror
Front grill .
Bumper body colour .
Fog lamp
Housing side mirror Black
Electric adjustable side mirrors
Door handle Black
Door handle at tailgate
Rear bumper
Over fender body colour
Steel wheel 15″
Alloy wheel
Tire size 215/70 R15
Safety
Hologen headlights .
Safety front windshield .
Side beam protector .
Skid plate
Sunband
Front dual airbags (driver & passenger)
Seat belt 3 points for driver & passenger .
Seat belt 3 points for rear passenger
Adjustable seat belt (height – low) .
Rear defogger
ABS, EBD include. G-sensor
Limited slip
Remote control include. Alarm system
Third brake light
Child door lock
Door half latch warning .
Key reminder
Head lamp reminder
Selt belt warning .
Tools .
Immobilizer system
Body Colour
ZENITH BLUE .
STERLING SILVER .
IMPERIAL BLOND .
FOXFIRE RED .
BLACK SAPPHIRE .
LIGHT PEWTER .
Chevrolet Colorado X-CAB Specs

Features
EXTENDED CAB
2WD 2WD 4WD
2.5 LS 2.5 LS1 2.5 LT 3.0 LS 3.0 LT 3.0 LT1 3.0 Z71 3.0 Z71 4X4
Interior
Cluster with
techometer
. . Silver trim . Silver trim
Control switch at door
panel
Silver trim Silver trim
Airconditioning with
heated glass system
. . . . . . . .
Digital milage . . . . . . . .
Central lock  –  – .  – . . . .
Power window  –  – .  – . . . .
Radio with cassette . . . . . . . .
Speaker 4 4 6 4 6 6 6 6
Seat and door panel
material
Tertis Kayak Tertis Kayak
Power steering with
safety collapse system
. . . . . . . .
Tilt steering . . . . . .
Leather steering wheel
and gear knob
. . . . .
Intermittent wiper . . Variable intermittent wiper . Variable intermittent wiper
Dome lamp . . . . . . . .
Power outlet . . . . . . . .
Cigarette package . . . . . . . .
Middle console with 2
cupholders
. . . . . . . .
Overhead console
include. sunglasses pocket/map lamp
. . . . .
Exterior
Light indicator at
side mirror
. . . . .
Front grill . . . . Body
colour
With
Chrome insert
With
Chrome insert
With
Chrome insert
Bumper body colour . . . . . . . .
Fog lamp  –  – . .
Housing side mirror Body
colour
Body
colour
Body
colour
Body
colour
Body
colour
With
Chrome insert
With
Chrome insert
With
Chrome insert
Electric adjustable
side mirrors
. . . . .
Door handle Body
colour
Body
colour
Body
colour
Body
colour
Body
colour
With
Chrome insert
With
Chrome insert
With
Chrome insert
Door handle at
tailgate
Body
colour
Body
colour
Body
colour
Body
colour
Body
colour
With
Chrome insert
With
Chrome insert
With
Chrome insert
Rear bumper  – Black  – Black With
Chrome insert
With
Chrome insert
With
Chrome insert
Over fender body
colour
. .
Steel wheel 15″ 15″  –
Alloy wheel 15″ 15″ 15″ 15″ 16″ 16″
Tire size 215/70
R15
215/70
R15
215/70
R15
215/70
R15
215/70
R15
215/70
R15
245/70
R16
245/70
R16
Safety
Hologen headlights . . . . . . . .
Safety front
windshield
. . . . . . . .
Side beam protector . . . . . . . .
Skid plate . .
Sunband . . . . .
Front dual airbags
(driver & passenger)
. . .
Seat belt 3 points for
driver & passenger
. . . . . . . .
Seat belt 3 points for
rear passenger
Adjustable seat belt
(height – low)
. . . . . . . .
Rear defogger . . . . .
ABS, EBD include.
G-sensor
. . . . . .
Limited slip .
Remote control
include. Alarm system
. . .
Third brake light . . . . . . . .
Child door lock  –  –  –  –
Door half latch
warning
. . . . . . . .
Key reminder . . . . . . . .
Head lamp reminder . . . . . . . .
Selt belt warning . . . . . . . .
Tools . . . . . . . .
Immobilizer system  –  – .  – . . . .
Body Colour
ZENITH BLUE . . . . . . . .
STERLING SILVER . . . . . . . .
IMPERIAL BLOND . . . . . . . .
FOXFIRE RED . . . . . . . .
BLACK SAPPHIRE . . . . . . . .
LIGHT PEWTER . . . . . . . .
Chevrolet Colorado C-CAB
Features
CREW CAB
2WD 2WD 4WD
2.5 LS 2.5 LT 3.0 LS 3.0 LT 3.0 LT1 3.0 Z71 3.0 Z71 4X4
Interior
Cluster with
techometer
. Silver
trim
. Silver
trim

Control switch at door
panel
. Silver
trim
. Silver
trim

Airconditioning with
heated glass system
. . . . . . .
Digital milage . . . . . . .
Central lock  – .  – . . . .
Power window  – .  – . . . .
Radio with cassette . . . . . . .
Speaker 4 6 4 6 6 6 6
Seat and door panel
material
Tertis Kayak Tertis Kayak
Power steering with
safety collapse system
. . . . . . .
Tilt steering . . . . .
Leather steering wheel
and gear knob
. . . . .
Intermittent wiper . Variable intermittent wiper . Variable intermittent wiper
Dome lamp . . . . . . .
Power outlet . . . . . . .
Cigarette package . . . . . . .
Middle console with 2
cupholders
. . . . . . .
Overhead console
include. sunglasses pocket/map lamp
. . . . .
Exterior
Light indicator at
side mirror
. . . . .
Front grill . . Body
colour
Body
colour
Body
colour
Chrome
Insert
Chrome
Insert
Bumper body colour . . . . . . .
Fog lamp  –  – . .
Housing side mirror Body
colour
Body
colour
Body
colour
Body
colour
Chrome
Insert
Chrome
Insert
Chrome
Insert
Electric adjustable
side mirrors
.  – . . . .
Door handle Body
colour
Body
colour
Body
colour
Body
colour
Chrome
Insert
Chrome
Insert
Chrome
Insert
Door handle at
tailgate
Body
colour
Body
colour
Body
colour
Body
colour
Chrome
Insert
Chrome
Insert
Chrome
Insert
Rear bumper  – ???? Black Chrome
Insert
Chrome
Insert
Chrome
Insert
Over fender body
colour
. .
Steel wheel 15″ 15″
Alloy wheel 15″ 15″ 15″ 16″ 16″
Tire size 215/70
R15
215/70
R15
215/70
R15
215/70
R15
215/70
R15
245/70
R16
245/70
R16
Safety
Hologen headlights . . . . . . .
Safety front
windshield
. . . . . . .
Side beam protector . . . . . . .
Skid plate . .
Sunband . . . . . .
Front dual airbags
(driver & passenger)
. . .
Seat belt 3 points for
driver & passenger
. . . . . . .
Seat belt 3 points for
rear passenger
. . . . . . .
Adjustable seat belt
(height – low)
. . . . . . .
Rear defogger . . . . .
ABS, EBD include.
G-sensor
. . . . .
Limited slip .
Remote control
include. Alarm system
. . .
Third brake light . . . . . . .
Child door lock . . . . . . .
Door half latch
warning
. . . . . . .
Key reminder . . . . . . .
Head lamp reminder . . . . . . .
Selt belt warning . . . . . . .
Tools . . . . . . .
Immobilizer system  – .  – . . . .
Body Colour
ZENITH BLUE . . . . . . .
STERLING SILVER . . . . . . .
IMPERIAL BLOND . . . . . . .
FOXFIRE RED . . . . . . .
BLACK SAPPHIRE . . . . . . .
LIGHT PEWTER . . . . . . .

Technical Data

Chevrolet Colorado S-CAB
Technical Data
Single Cab 2.5 GL1
Engine
Engine Code 4JK1 – TC
Engine Diesel engine 4 in line Commonrail 16v – turbo Direct Injection including Intercooler
Cylinder capacities (cc.) 2,499
Bore x Stroke (mm.) 95.4 x 87.4
Compression ratio 18.3:1
Max. Horse Power (Kw(PS)/rpm) 85(116)/3600
Max. Torque (Nm (Kg-m) / rpm)  280(29)/1800 – 2200
Injector Electronic controlled injector
Transmission and clutch
Transmission Manual Transmission
Gear Ratio 1st 4.008
  2nd 2.301
  3rd 1.427
  4th 1.000
  5th 0.745
  Rev. 3.651
Final gear ratio 3.583
Suspension
Front Independent, Double wishbone including Gas absorber
Rear Semi elliptical, alloy steel leaf spring including Gas absorber
Loading suspension Heavy duty
Steering
Type Rack and Pinion include. Power steering
Brake system
Front Ventilated Disc 256 mm.
Rear Drum 254 mm.
Brake booster  7″ x 8″
Dimension
Length (with out rear bumper) (mm.) 5,055
Box length (mm.)  2,310
Width (mm.) 1,720
Height (mm.) 1,635
Wheelbase (mm.) 3,050
Wheelbase front/rear (mm.) 1,460 / 1,460
Ground clearance (mm.) 200
Turning radius (m.) 5.9
Dimension Interior
Length passenger compartment – front (mm.) 1,085
Height from seat (mm.) 1,004
Width shoulder level (mm.) 1,450
Width waist level (mm.) 1,325
Distance front & rear seat (mm.)
Slide distance (mm.) 198
Capacities
Gross weight (kg.) 2,650
No. passenger 2
Tank capacities (l.) 76
Chevrolet Colorado X-CAB
Technical Data
EXTENDED CAB
2WD 2WD 4WD
2.5 LS 2.5 LS1 2.5 LT 3.0 LS 3.0 LT 3.0 LT1 3.0 Z71 3.0 Z71 4X4
Engine
Engine Code 4JK1 – TC 4JJ1 – TC
Engine Diesel engine 4 in line Commonrail 16v – turbo Direct Injection including Intercooler
Cylinder capacities (cc.) 2,499 2,999
Bore x Stroke (mm.) 95.4 x 87.4 95.4 x 104.9
Compression ratio 18.3:1 17.5 : 1
Max. Horse Power (Kw(PS)/rpm) 85(116)/3600 107 (146) / 3,600
Max. Torque (Nm (Kg-m) / rpm)  280(29)/1800 – 2200 294 (30) / 1,400 – 3,400
Injector Electronic controlled injector
Transmission and clutch
Transmission Manual transmission Manual / Automatic Manual Manual / Automatic
Gear Ratio 1st 4.008 4.008 / 2.785
  2nd 2.301 2.301 / 1.545
  3rd 1.427 1.427 / 1.000
  4th 1.000 1.000 / 0.694
  5th 0.745 0.828 / –
  Rev. 3.651 3.651 / 2.272
Final gear ratio 3.583 3.727/3.727 4.300/4.300
Suspension
Front Independent, Double wishbone including Gas absorber Independent, Double wishbone including Gas absorber Independent, Double wishbone with stabilzer bar including Gas absorber
Rear Semi elliptical, alloy steel leaf spring including Gas absorber
Loading suspension Standard
Steering
Type Rack and Pinion include. Power steering
Brake system
Front Ventilated Disc 256 mm. Ventilated Disc 256 mm. Ventilated Disc 280 mm.
Rear Drum 254 ??. Drum 254 ??. Drum 295 ??.
Brake booster  7″ x 8″
Dimension
Length (with rear bumper) (mm.) 5,055 / 5,152
Box length (mm.) 1,840
Width (mm.) 1,720 1,720 1,798
Height (mm.) 1,640 1,640 1,755
Wheelbase (mm.) 3,050
Wheelbase front/rear (mm.) 1,460 / 1,460 1,460 / 1,460 1,515/1,520
Ground clearance (mm.) 200 200 225
Turning radius (m.) 5.9 5.9 6.2
Dimension Interior
Length passenger compartment – front (mm.) 1,085
Height from seat (mm.) 1,004
Width shoulder level (mm.) 1,450
Width waist level (mm.) 1,325
Distance front & rear seat (mm.) 599
Slide distance (mm.) 198
Capacities
Gross weight (kg.) 2,650 2,650 2,750
No. passenger 2
Tank capacities (l.) 76
Chevrolet Colorado C-CAB (Double Cab)
Technical Data
CREW CAB
2WD 2WD 4WD
2.5 LS 2.5 LT 3.0 LS 3.0 LT 3.0 LT1 3.0 Z71 3.0 Z71 4X4
Engine
Engine Code 4JK1 – TC 4JJ1 – TC
Engine Diesel engine 4 in line Commonrail 16v – turbo Direct Injection including Intercooler
Cylinder capacities (cc.) 2,499 2,999
Bore x Stroke (mm.) 95.4 x 87.4 95.4 x 104.9
Compression ratio 18.3:1 17.5 : 1
Max. Horse Power (Kw(PS)/rpm) 85(116)/3600 107 (146) / 3,600
Max. Torque (Nm (Kg-m) / rpm)  280(29)/1800 – 2200 294 (30) / 1,400 – 3,400
Injector Electronic controlled injector
Transmission and clutch
Transmission Manual transmission Manual transmission Manual / Auto Manual transmission Manual / Auto
Gear Ratio 1st 4.008 4.008 / 2.785
  2nd 2.301 2.301 / 1.545
  3rd 1.427 1.427 / 1.000
  4th 1.000 1.000 / 0.694
  5th 0.745 0.828 / –
  Rev. 3.651 3.651 / 2.272
Final gear ratio 3.583 3.727/3.727 4.300/4.300
Suspension
Front Independent, Double wishbone including Gas absorber Independent, Double wishbone including Gas absorber Independent, Double wishbone with stabilzer bar including Gas absorber
Rear Semi elliptical, alloy steel leaf spring including Gas absorber
Loading suspension CRS (Comfort-Ride Suspension)
Steering
Type Rack and Pinion include. Power steering
Brake system
Front Ventilated Disc 256 mm. Ventilated Disc 256 mm. Ventilated Disc 280 mm.
Rear Drum 254 mm. Drum 254 mm. Drum 295 mm.
Brake booster 7″ x 8″
Dimension
Length (with rear bumper) (mm.) 4,935 / 5,032
Box length (mm.) 1,420
Width (mm.) 1,720 1,720 1,798
Height (mm.) 1,640 1,640 1,755
Wheelbase (mm.) 3,050
Wheelbase front/rear (mm.) 1,460 / 1,460 1,460 / 1,460 1,515/1,520
Ground clearance (mm.) 200 200 225
Turning radius (m.) 5.9 5.9 6.2
Dimension Interior
Length passenger compartment – front (mm.) 1,085
Height from seat (mm.) 1,004
Width shoulder level (mm.) 1,450
Width waist level (mm.) 1,325
Distance front & rear seat (mm.) 826
Slide distance (mm.) 198
Capacities
Gross weight (kg.) 2,150 2,150 2,200 2,250
No. passenger 5
Tank capacities (l.) 76
Model
Crew Cab 4×2 Ext Cab 4×4 (M)
Price [Baht] from 457,000 Baht (see below)
Layout front-engine / RWD front-engine / awd
Drag Coefficient [cd] NA
Curb Weight [lb (kg)] 3747 (1703) 3802 (1728)
Weight Distribution [%f / r] NA
Cargo Space [cu ft.] 36.7 43.9
Overall Length [in. (mm)] 207.0 (5258)
Overall Width [in. (mm)] 67.6 (1717)
Overall Height [in. (mm)] 67.0 (1702) 66.3 (1684)
Wheelbase [in. (mm)] 125.9 (3198) 125.9 (3198)
Track Front [in. (mm)] 57.5 (1460) 59.6 (1514)
Track Rear [in. (mm)] 57.5 (1460) 57.5 (1460)
Steering Rack & Pinion; Power-assisted
Turning Radius [ft. (m)] 21.5 (6.6) 20.5 (6.3)
Tires front 225/70 R15 235/75 R15
Tires rear 225/70 R15 235/75 R15
Engine
Type all-aluminum Inline-5 all-aluminum Inline-4
Valvetrain DOHC 4-valve/cyl.: continuously variable exhaust valve timing
Displacement [cc] 3460 2770
Bore & Stroke [mm] 93.0 x 101.6
Compression Ratio 10.0:1
Redline [rpm] 6300
Max. Power [Bhp at rpm] 220 at 5600 175 at 5600
Max. Torque [lb-ft (Nm) at rpm] 225 (305) at 2800 185 (251) at 2800
Bhp/Liter 63.6 63.2
Accommodation
Seating Capacity 5-6 4-5
Front Head Room [in. (mm)] 39.3 (998)
Front Leg Room [in. (mm)] 42.0 (1067)
Rear Head Room [in. (mm)] 37.9 (963)
Rear Leg Room [in. (mm)] 34.7 (881) 23.1 (587)
Interior Noise
Idle in neutral [dBA] NA
70 mph coasting [dBA] NA
Gear Ratios
1st 3.06:1 3.75:1
2nd 1.63:1 2.26:1
3rd 1.00:1 1.37:1
4th 0.70:1 1.00:1
5th NA 0.73:1
Final drive 2.39:1 2.49:1
Suspension
Front Independent; coil springs, anti-roll bar
Rear Live-axle; steel leaf springs
Braking
Front – Brakes 11.2 in. (285 mm) ventilated discs
Rear – Brakes 11.6 in. (295) drums
70 – 0 mph [ft (m)] NA
60 – 0 mph [ft (m)] NA

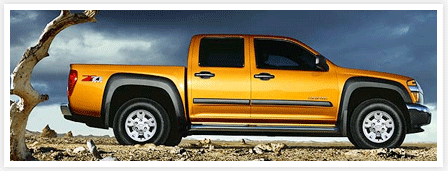

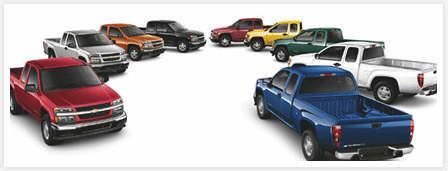

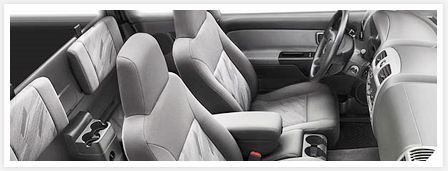

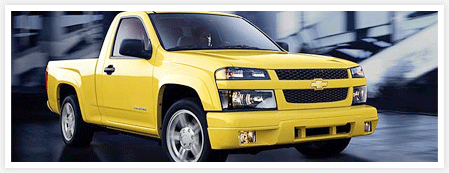

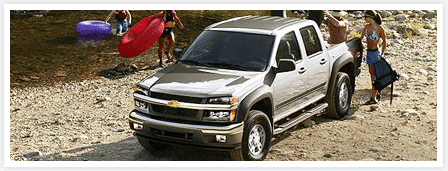

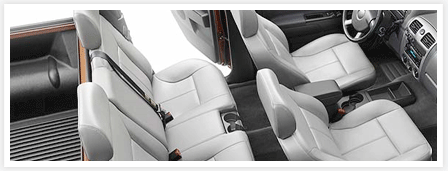

Colorado Gallery

  • colorado-car

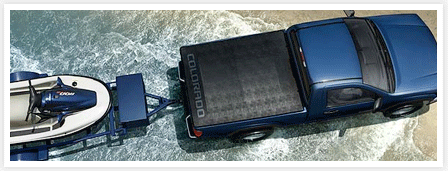

  • colorado-car1
  • colorado-car2

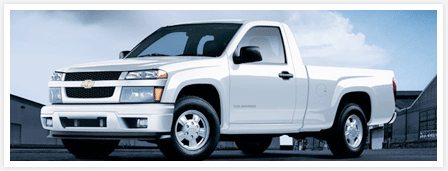

  • colorado-car3

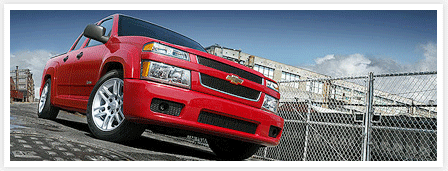

  • colorado-car4
  • colorado-car5
  • colorado-car6

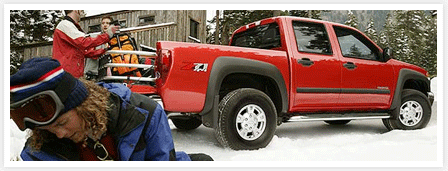

  • colorado-car7
  • colorado-car8
  • colorado-car9
  • colorado-car10

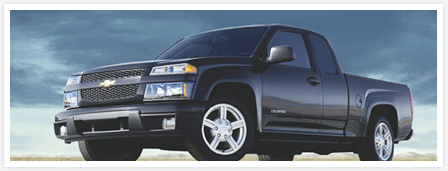

  • colorado-car11

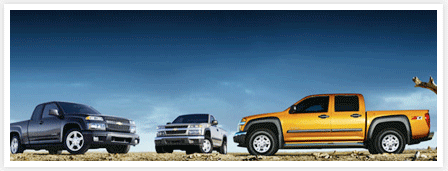

  • colorado-car12
  • colorado-car13

Colorado Single Cab

colorado-single-cab
Model : Colorado S Cab Base 2.5L
Engine Type : 4JA1-L Direct Injection Turbo
Engine Capacity : 2499
Style : Single Cab
Driving System : 2WD
Transmission : Manual 5 Speed

Colorado Extra Cab LS and LT

Model : Colorado X Cab LS 2.5L Colorado X Cab LS1 2.5L Colorado X Cab LT 3.0L Colorado X Cab LT 3.0L
Engine Type : 4JA1-L Direct Injection Turbo 4JA1-L Direct Injection Turbo 4JJ1-TC Commonrail Turbo Direct injection 4JJ1-TC Commonrail Turbo Direct injection
Engine Capacity : 2499 2499 2999 2999
Style : Extra Cab Extra Cab Extra Cab Extra Cab
Driving System : 2WD 2WD 2WD 2WD
Transmission : Manual 5 Speed Manual 5 Speed Manual 5 Speed Automatic 4 speed

Colorado Extra Cab Z71

Model : Colorado X Cab Z71 M/T 3.0 L Colorado X Cab 4×4 Z71 M/T 3.0 L Colorado X Cab 4×4 Z71 A/T 3.0L
Engine Type : 44JJ1-TC Commonrail Turbo Direct injection 44JJ1-TC Commonrail Turbo Direct injection 4JJ1-TC Commonrail Turbo Direct injection
Engine Capacity : 2999 2999 2999
Style : Extra Cab Extra Cab Extra Cab
Driving System : 2WD 4WD 4WD
Transmission : Manual 5 Speed Manual 5 Speed Automatic 4 Speed

Colorado C Cab

Model : Colorado C Cab LS 3.0L Colorado C Cab LT 3.0L Colorado C Cab LT1 3.0L A/T
Engine Type : 44JJ1-TC Common-rail Turbo Direct injection 44JJ1-TC Common-rail Turbo Direct injection 4JJ1- TC Common-rail Turbo Direct injection
Engine Capa-city : 2999 2999 2999
Style : Double Cab Double Cab Double Cab
Driving Sys-tem : 2WD 2WD 2WD
Trans-mission : Manual 5 Speed Manual 5 Speed Automatic 4 Speed
Model : Colorado C Cab Z71 M/T 3.0L Colorado C Cab Z71 A/T 3.0L Colorado C Cab 4×4 Z71 M/T 3.0L Colorado C Cab 4×4 Z71 A/T 3.0L
Engine Type : 4JJ1- TC Common-rail Turbo Direct injection 44JJ1- TC Common-rail Turbo Direct injection 44JJ1- TC Common-rail Turbo Direct injection 4JJ1- TC Common-rail Turbo Direct injection
Engine Capacity : 2999 2999 2999 2999
Style : Double Cab Double Cab Double Cab Double Cab
Driving System : 2WD 2WD 4WD 4WD
Transmission : Manual 5 Speed Automatic 4 Speed Manual 5 Speed Automatic 4 Speed

Fuel Economy

Model :
EPA Estimated MPG city/hwy.
Vortec 2800 I-4
2WD with 5-speed manual (Regular and Extended Cab models) 21/27
2WD with 5-speed manual (Crew Cab models): 21/26
4×4 with 5-speed manual 19/23
2WD with 4-speed automatic 18/25
4×4 with 4-speed automatic 17/23
Vortec 3500 I-5
2WD with 5-speed manual 19/25
4×4 with 5-speed manual 19/24
2WD with 4-speed automatic (Regular and Extended Cab models) 18/23
4×4 with 4-speed automatic (Regular and Extended Cab models) 18/22
2WD with 4-speed automatic (Crew Cab models) 18/23
4×4 with 4-speed automatic (Crew Cab models) 17/22

Dimensions

dimension

NOTE: All dimensions shown are inches/millimeters unless otherwise noted.

Exterior
Regular Cab
Extended Cab
Crew Cab
Wheelbase 111.3/2826 126.0/3200 126.0/3200
Length 192.4/4886 207.1/5260 207.1/5260
Height
2WD 64.9/1649 64.9/1649 65.5/1656
4×4 67.6/1718 67.6/1718 67.9/1725
Width 68.6/1742 68.6/1742 68.6/1742
2WD tread width
front 57.5/1460 57.5/1460 57.5/1460
rear 57.5/1460 57.5/1460 57.5/1460
4×4 tread width

front 59.0/1499 59.0/1499 59.0/1499
rear 59.2/1504 59.2/1504 59.2/1504
Bumper to front axle 33.9/861 33.9/861 33.9/861
Rear overhang 47.2/1199 47.2/1199 47.2/1199
Cargo Box

Regular and Extended Cab Box
Crew Cab Box
Length at floor 72.8 (Reg.), 72.8 (Ext.)/1849 61.1/1552
Width at floor 57.2/1453 57.2/1453
Width at floor 57.2/1453 57.2/1453
Width between wheel housings 42.6/1081 42.6/1081
Tailgate width 52.4/1331 52.4/1331
Inside height 18.6/472 18.6/472
Cargo box volume1 (cu. ft.) 43.9 36.7

Cargo and load capacity limited by weight and distribution.

Interior
Regular Cab
Extended Cab
Crew Cab
Headroom
front
39.6/1006 39.6/1006 39.6/1006
rear
37.9/962 38.3/973
Legroom
front
42.2/1071 42.2/107 42.2/107
rear
23.1/587 34.8/883
Shoulder room

front
57.1/1450 57.1/1450 57.1/14506
rear
57.2/1453 57.1/1450

Gross Vehicle Weight Rating (GVWR). When properly equipped; includes weight of vehicle, driver, passengers, cargo and optional equipment.

Maximum payload capacity includes weight of driver, passengers, optional equipment and cargo.

Trailering

Maximum trailer weight ratings (lbs./kg) – Manual Transmission

Engine
Vortec 2800 I-4
Vortec 3500 I-5
Regular Cab
2WD 2400/1088 3800/1724
4×4 2000/907 3500/1588
Extended Cab
2WD 2200/998 3700/1768
4×4 1900/862 3400/1542
Crew Cab 4×4
2WD 2000/907
4×4 1700/771

Maximum trailer weight ratings (lbs./kg) – Automatic Transmission

Engine
Vortec 2800 2.8L I-4
Vortec 3500 3.5L I-5
Regular Cab
2WD 3400/1542 4000/1814
4×4 3100/1406 4000/1814
Extended Cab
2WD 3200/1451 4000/1814
4×4 2900/1315 4000/1814
Crew Cab
2WD 3100/1406 4000/1814
4×4 2700/1225 4000/1814

Maximum trailer weight ratings are calculated assuming a base vehicle, except for any option(s) necessary to achieve the rating, plus driver. The weight of other optional equipment, passengers and cargo will reduce the maximum trailer weight your vehicle can tow.

NOTE: Trailer tongue weight should be 10 to 15 percent of total loaded trailer weight up to 500 lbs.

NOTE: For recreational towing restrictions and availability, consult the Owner’s Manual.

Braking

U.S. Standard
Metric
Front
Rotor size (diam. x thick.) 11.0 x 1.1 in. 280 x 27mm
Swept area : 105.7 sq. in. 681.7 sq. cm
Rear
Drum size (diam. x width) 11.6 x 1.8 in. 295 x 45mm
Swept area 64.6 sq. in. 417 sq. cm

Engine

Engine
Vortec 2800 I-4
Vortec 3500 I-5
Displacement (cu. in./liters) 169/2.8 211/3.5
Bore & stroke (in./mm) 3.66 x 4.0/91.4 x 101.6 3.66 x 4.0/91.4 x 101.6
Compression ratio : 10.0:1 10.0:1
Cylinder block material aluminum aluminum
Cylinder head material aluminum aluminum
Valve configuration DOHC DOHC
Valves/cylinder 4 4
Ignition system coil-on-plug coil-on-plug
Lifters hydraulic roller hydraulic roller
Cam drive chain chain
Coolant capacity (quarts/liters)

manual transmission 9.5/9 9.5/9
automatic transmission 9.5/9 9.5/9
Oil capacity (quarts/liters) 4.5/4.3 4.5/4.3
Alternator rating (amps) 100 100
Battery (SAE rating, cca) 690 690
Recommended unleaded fuel 87 octane 87 octane
Maximum engine speed (RPM) 5600 5600
Horsepower/kW (@ engine RPM) 175/130.5 @ 5600 220/164.1 @ 5600
Torque (lb.-ft./N-m @ RPM) 185/250 @ 2800 225/305 @ 2800

Steering

Ratio
2WD
18.1:1 (on center)
4×4
19.1:1 (on center)
Turning diameter curb-to-curb (ft./m) :

Regular Cab models: 40/12.2 (approx.); Extended and Crew Cab models: 44.6/13.6 (approx.)

Transmission

Manual 5-speed w/overdrive
Automatic 4-speed w/overdrive
First gear 3.75 3.05
Second gear 2.26 1.62
Third gear : 1.37 1.00
Fourth gear 1.00 0.69
Fifth gear 0.73
Reverse 3.67 2.29
Case material die-cast aluminum die-cast aluminum
Engines & Power
Four- Wheel Drive Trims

Z85 4WD LS Z85 4WD Z71 4WD Z85 Ext. Cab 4WD LS Z71 4WD LS Z85 Ext. Cab 4WD Z71 Ext. Cab 4WD Z85 Crew Cab 4WD
Standard Engine 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4
Horse-power 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM
Torque (lb-ft) 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM
Rear-Wheel Drive Trims

Z85 2WD LS Z85 2WD ZQ8 2WD Z71 2WD Z85 Ext. Cab 2WD LS ZQ8 2WD LS Z71 2WD ZQ8 Ext. Cab 2WD
Standard Engine 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4
Horsepower 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM
Torque (lb-ft) 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM
Transmissions
Four-Wheel Drive Trims Z85 4WD LS Z85 4WD Z71 4WD Z85 Ext. Cab 4WD LS Z71 4WD LS Z85 Ext. Cab 4WD Z71 Ext. Cab 4WD Z85 Crew Cab 4WD
4-Speed Automatic Overdrive Opt. Opt. Opt. Opt. Opt. Opt. Opt. Opt.
5-Speed Manual Overdrive Std. Std. Std. Std. Std. Std. Std. Std.
Rear-Wheel Drive Trims Z85 2WD LS Z85 2WD ZQ8 2WD Z71 2WD Z85 Ext. Cab 2WD LS ZQ8 2WD LS Z71 2WD ZQ8 Ext. Cab 2WD
4-Speed Automatic Overdrive Opt. Opt. Opt. Opt. Opt. Opt. Opt. Opt.
5-Speed Manual Overdrive Std. Std. Std. Std. Std. Std. Std. Std.
Fuel Economy
Four-Wheel Drive Trims Z85 4WD LS Z85 4WD Z71 4WD Z85 Ext. Cab 4WD LS Z71 4WD LS Z85 Ext. Cab 4WD Z71 Ext. Cab 4WD Z85 Crew Cab 4WD
City (mpg) 18 18 18 18 18 18 18 17
Highway (mpg) 23 23 23 23 23 23 23 22
Rear-Wheel Drive Trims Z85 2WD LS Z85 2WD ZQ8 2WD Z71 2WD Z85 Ext. Cab 2WD LS ZQ8 2WD LS Z71 2WD ZQ8 Ext. Cab 2WD
City (mpg) 19 19 19 19 19 19 19 19
Highway (mpg) 24 24 24 24 24 24 24 24
Comfort & Convenience
Four-Wheel Drive Trims

Z85 4WD LS Z85 4WD Z71 4WD Z85 Ext. Cab 4WD LS Z71 4WD LS Z85 Ext. Cab 4WD Z71 Ext. Cab 4WD Z85 Crew Cab 4WD
Sunroof N/A N/A N/A N/A N/A N/A N/A N/A
Air Conditioning Std. Std. Std. Std. Std. Std. Std. Std.
Power Windows N/A N/A N/A N/A N/A N/A N/A N/A
Power Door Locks N/A N/A N/A N/A N/A N/A N/A N/A
Leather Seats N/A N/A N/A N/A N/A N/A N/A Opt.
Power Seats N/A N/A N/A N/A N/A N/A N/A Opt.
Max. Seating 3 3 3 5 3 5 5 6
Rear-Wheel Drive Trims Z85 2WD LS Z85 2WD ZQ8 2WD Z71 2WD Z85 Ext. Cab 2WD LS ZQ8 2WD LS Z71 2WD ZQ8 Ext. Cab 2WD
Sunroof N/A N/A N/A N/A N/A N/A N/A N/A
Air Conditioning Std. Std. Std. Std. Std. Std. Std. Std.
Power Windows N/A N/A N/A N/A N/A N/A N/A N/A
Power Door Locks N/A N/A N/A N/A N/A N/A N/A N/A
Leather Seats N/A N/A N/A N/A N/A N/A N/A N/A
Power Seats N/A N/A N/A N/A N/A N/A N/A N/A
Max. Seating 3 3 3 3 5 2 3 5
Entertainment
Four-Wheel Drive Trims

Z85 4WD LS Z85 4WD Z71 4WD Z85 Ext. Cab 4WD LS Z71 4WD LS Z85 Ext. Cab 4WD Z71 Ext. Cab 4WD Z85 Crew Cab 4WD
Cassette Player N/A N/A N/A N/A N/A N/A N/A N/A
CD Player Opt. Std. Opt. Opt. Std. Std. Opt. Std.
Nav. System N/A N/A N/A N/A N/A N/A N/A N/A
Rear-Wheel Drive Trims Z85 2WD LS Z85 2WD ZQ8 2WD Z71 2WD Z85 Ext. Cab 2WD LS ZQ8 2WD LS Z71 2WD ZQ8 Ext. Cab 2WD
Cassette Player N/A N/A N/A N/A N/A N/A N/A N/A
CD Player Opt. Std. Opt. Opt. Opt. Std. Std. Opt.
Nav. System N/A N/A N/A N/A N/A N/A N/A N/A
Safety
Four-Wheel Drive Trims

Z85 4WD LS Z85 4WD Z71 4WD Z85 Ext. Cab 4WD LS Z71 4WD LS Z85 Ext. Cab 4WD Z71 Ext. Cab 4WD Z85 Crew Cab 4WD
Airbags Driver Side Driver Side Driver Side Driver Side Driver Side Driver Side Driver Side Driver Side
ABS Brakes Std. Std. Std. Std. Std. Std. Std. Std.
Traction Control N/A N/A N/A N/A N/A N/A N/A N/A
Stability Control N/A N/A N/A N/A N/A N/A N/A N/A
Rear-Wheel Drive Trims

Z85 2WD LS Z85 2WD ZQ8 2WD Z71 2WD Z85 Ext. Cab 2WD LS ZQ8 2WD LS Z71 2WD ZQ8 Ext. Cab 2WD
Airbags Driver Side Driver Side Driver Side Driver Side Driver Side Driver Side Driver Side Driver Side
ABS Brakes Std. Std. Std. Std. Std. Std. Std. Std.
Traction
Control
Opt. Opt. Opt. Opt. Opt. Opt. Std. Opt.
Stability Control N/A N/A N/A N/A N/A N/A N/A N/A
Final Assembly
Four-Wheel Drive Trims

Z85 4WD LS Z85 4WD Z71 4WD Z85 Ext. Cab 4WD LS Z71 4WD LS Z85 Ext. Cab 4WD Z71 Ext. Cab 4WD Z85 Crew Cab 4WD
Rear-Wheel Drive Trims

Z85 2WD LS Z85 2WD ZQ8 2WD Z71 2WD Z85 Ext. Cab 2WD LS ZQ8 2WD LS Z71 2WD ZQ8 Ext. Cab 2WD
Engines & Power
Four- Wheel Drive Trims

LS Z71 Ext. Cab 4WD LS Z85 Crew Cab 4WD Z71 Crew Cab 4WD LS Z71 Crew Cab 4WD
Standard Engine 2.8L 175 hp I4 2.8L 175 hp I4 3.5L 220 hp I5 3.5L 220 hp I5
Horse-power 175 @ 5600 RPM 175 @ 5600 RPM 220 @ 5600 RPM 220 @ 5600 RPM
Torque (lb-ft) 185 @ 2800 RPM 185 @ 2800 RPM 225 @ 2800 RPM 225 @ 2800 RPM
Rear-Wheel Drive Trims

LS Z85 Ext. Cab 2WD Z71 Ext. Cab 2WD Z85 Crew Cab 2WD LS ZQ8 Ext. Cab 2WD LS Z71 Ext. Cab 2WD LS Z85 Crew Cab 2WD ZQ8 Crew Cab 2WD Z71 Crew Cab 2WD LS ZQ8 Crew Cab 2WD LS Z71 Crew Cab 2WD
Standard Engine 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4 3.5L 220 hp I5 3.5L 220 hp I5 3.5L 220 hp I5 3.5L 220 hp I5
Horsepower 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM 220 @ 5600 RPM 220 @ 5600 RPM 220 @ 5600 RPM 220 @ 5600 RPM
Torque
(lb-ft)
185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM 225 @ 2800 RPM 225 @ 2800 RPM 225 @ 2800 RPM 225 @ 2800 RPM
Transmissions
Four-Wheel Drive Trims LS Z71 Ext. Cab 4WD LS Z85 Crew Cab 4WD Z71 Crew Cab 4WD LS Z71 Crew Cab 4WD
4-Speed Automatic Overdrive Opt. Opt. Std. Std.
5-Speed Manual Overdrive Std. Std. N/A N/A
Rear-Wheel Drive Trims LS Z85 Ext. Cab 2WD Z71 Ext. Cab 2WD Z85 Crew Cab 2WD LS ZQ8 Ext. Cab 2WD LS Z71 Ext. Cab 2WD LS Z85 Crew Cab 2WD ZQ8 Crew Cab 2WD Z71 Crew Cab 2WD LS ZQ8 Crew Cab 2WD LS Z71 Crew Cab 2WD
4-Speed Automatic Overdrive Opt. Opt. Opt. Opt. Opt. Opt. Std. Std. Std. Std.
5-Speed Manual Overdrive Std. Std. Std. Std. Std. Std. N/A N/A N/A N/A
Fuel Economy
Four-Wheel Drive Trims LS Z71 Ext. Cab 4WD LS Z85 Crew Cab 4WD Z71 Crew Cab 4WD LS Z71 Crew Cab 4WD
City (mpg) 18 17 17 17
Highway (mpg) 23 22 22 22
Rear-Wheel Drive Trims LS Z85 Ext. Cab 2WD Z71 Ext. Cab 2WD Z85 Crew Cab 2WD LS ZQ8 Ext. Cab 2WD LS Z71 Ext. Cab 2WD LS Z85 Crew Cab 2WD ZQ8 Crew Cab 2WD Z71 Crew Cab 2WD LS ZQ8 Crew Cab 2WD LS Z71 Crew Cab 2WD
City (mpg) 19 19 19 19 19 19 19 19 19 19
Highway (mpg) 24 24 24 24 24 24 24 24 24 24
Comfort & Convenience
Four-Wheel Drive Trims

LS Z71 Ext. Cab 4WD LS Z85 Crew Cab 4WD Z71 Crew Cab 4WD LS Z71 Crew Cab 4WD
Sunroof N/A N/A N/A N/A
Air Conditioning Std. Std. Std. Std.
Power Windows N/A Std. N/A Std.
Power Door Locks N/A Std. N/A Std.
Leather Seats N/A Opt. Opt. Opt.
Power Seats N/A Opt. Opt. Opt.
Max. Seating 5 6 6 5
Rear-Wheel Drive Trims LS Z85 Ext. Cab 2WD Z71 Ext. Cab 2WD Z85 Crew Cab 2WD LS ZQ8 Ext. Cab 2WD LS Z71 Ext. Cab 2WD LS Z85 Crew Cab 2WD ZQ8 Crew Cab 2WD Z71 Crew Cab 2WD LS ZQ8 Crew Cab 2WD LS Z71 Crew Cab 2WD
Sunroof N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Air Conditioning Std. Std. Std. Std. Std. Std. Std. Std. Std. Std.
Power Windows N/A N/A N/A N/A N/A Std. N/A N/A Std. Std.
Power Door Locks N/A N/A N/A N/A N/A Std. N/A N/A Std. Std.
Leather Seats N/A N/A Opt. N/A N/A Opt. Opt. Opt. Opt. Opt.
Power Seats N/A N/A Opt. N/A N/A Opt. Opt. Opt. Opt. Opt.
Max. Seating 5 5 6 4 5 6 5 6 5 5
Entertainment
Four-Wheel Drive Trims

LS Z71 Ext. Cab 4WD LS Z85 Crew Cab 4WD Z71 Crew Cab 4WD LS Z71 Crew Cab 4WD
Cassette Player N/A N/A N/A N/A
CD Player Std. Std. Std. Std.
Nav. System N/A N/A N/A N/A
Rear-Wheel Drive Trims LS Z85 Ext. Cab 2WD Z71 Ext. Cab 2WD Z85 Crew Cab 2WD LS ZQ8 Ext. Cab 2WD LS Z71 Ext. Cab 2WD LS Z85 Crew Cab 2WD ZQ8 Crew Cab 2WD Z71 Crew Cab 2WD LS ZQ8 Crew Cab 2WD LS Z71 Crew Cab 2WD
Cassette Player N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
CD Player Std. Opt. Std. Std. Std. Std. Std. Std. Std. Std.
Nav. System N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Safety
Four-Wheel Drive Trims

LS Z71 Ext. Cab 4WD LS Z85 Crew Cab 4WD Z71 Crew Cab 4WD LS Z71 Crew Cab 4WD
Airbags Driver
Side
Driver
Side
Driver
Side
Driver
Side
ABS Brakes Std. Std. Std. Std.
Traction Control N/A N/A N/A N/A
Stability Control N/A N/A N/A N/A
Rear-Wheel Drive Trims

LS Z85 Ext. Cab 2WD Z71 Ext. Cab 2WD Z85 Crew Cab 2WD LS ZQ8 Ext. Cab 2WD LS Z71 Ext. Cab 2WD LS Z85 Crew Cab 2WD ZQ8 Crew Cab 2WD Z71 Crew Cab 2WD LS ZQ8 Crew Cab 2WD LS Z71 Crew Cab 2WD
Airbags Driver
Side
Driver
Side
Driver
Side
Driver
Side
Driver
Side
Driver
Side
Driver
Side
Driver
Side
Driver
Side
Driver
Side
ABS Brakes Std. Std. Std. Std. Std. Std. Std. Std. Std. Std.
Traction Control Opt. Opt. Opt. Opt. Std. Std. Opt. Std. Std. Std.
Stability Control N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Final Assembly
Four-Wheel Drive Trims

LS Z71 Ext. Cab 4WD LS Z85 Crew Cab 4WD Z71 Crew Cab 4WD LS Z71 Crew Cab 4WD
Rear-Wheel Drive Trims

LS Z85 Ext. Cab 2WD Z71 Ext. Cab 2WD Z85 Crew Cab 2WD LS ZQ8 Ext. Cab 2WD LS Z71 Ext. Cab 2WD LS Z85 Crew Cab 2WD ZQ8 Crew Cab 2WD Z71 Crew Cab 2WD LS ZQ8 Crew Cab 2WD LS Z71 Crew Cab 2WD
Performance
0 – 60 Time(seconds)
1/4 Mile Time(seconds)
1/4 Mile Speed(mph)
Speed(mph) Braking 60 – 0mph (ft.)
Braking 60 – 0 mph (ft.)
Chevrolet Colorado LS Crew Cab 4wd – I5 3.5L (220 hp) 4A + ABS 8.50 16.50 87.40 150
Chevrolet Colorado LS Crew Cab 4wd – I5 3.5L (220 hp) 4A + ABS : 10.03 17.53 82.50 156

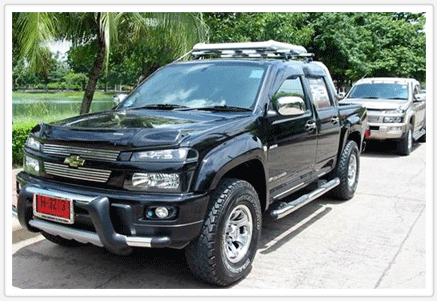

colorado-car14

Quick Contact Form
